> >Woven Polyester Filter Cloth

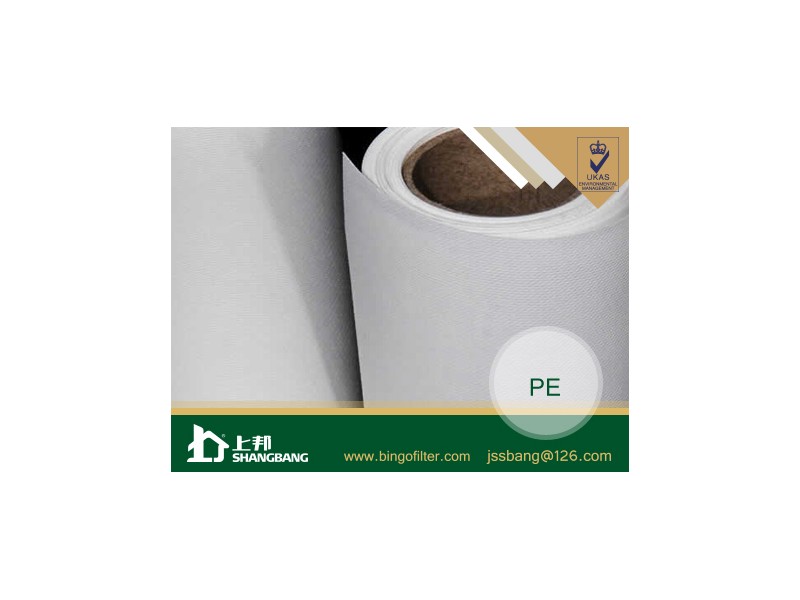

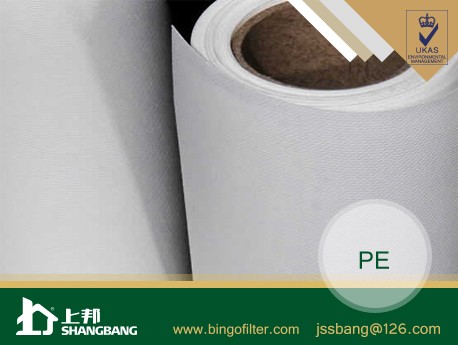

New Polyester Filter Cloth View larger

Woven Polyester Filter Cloth

Polyester filter and dust collection fabrics have very good resistance to chemicals, abrasion and dry heat degradation, plus excellent dimensional stability. Typical applications include dust collection, particularly in the cement industry; acid refining of ore; anode bags for electroplating; tubular battery separation fabrics.

More details

Detail

Filter Application

Packing & Delivery

Technical Data

Surfance Treatment

Features & Benefits

Woven Polyester Filter Cloth Type

1. Polyester filament yarn filter cloth

2. Polyester staple yarn filter cloth

3. PET monofilament fabrics

Representative products

The thinner type: 747,758,729,208,130,240,260

The thick type: 3014,3927,4030,822,3010,621,F625

Additional notes: Produce customized products to meet your requirements

Applications of Woven Polyester Filter Cloth

Dust collector or liquid-solid separation. Mainly used in food and beverage industry,
pharmaceutical industry, non-ferrous metallurgy, chemical plant, building section and
mining industry,etc, for the equipment of filter presses, centrifuge filters, vacuum filters,
 belt filter presses, etc.

Polyester Filter Cloth Packaging:

Packaging Detail:  Poly bag, woven bag, carton or according to the customer's requirement

Delivery Detail:

5~20days If more questions or would like to know more specific information, please fill in the form below and we will get in touch with you within one workday to answer your questions.

Technical data of Polyester Filter Cloth

Properties

Terylene

Kapron

Polypropylene

Vinylon

Acid resistance

Strong

Poor

Excellent

not

Alkali resistance

weak

Excellent

High

strong

Electrical conductivity

Very poor

Fairly good

Excellent

So-so

Elongation at break

30%-40%

18%-45%

Better than terylene

12%-25%

Wear resistance

Excellent

Excellent

Good

Fairly good

Thermal endurance

170 °C

130 °C

90 °C

100 °C

Softening point

240 °C

180 °C

150 °C

200 °C

M.P.

265 °C

215 °C

170 °C

220 °C

PET staple fabrics

Model No.

Density(warp/weft)
  (counts/10cm)

 Thickness (mm)

Weight (g/m2)

5926

260/202

1.42

610

734

232/166

0.62

245

745

232/196

0.48

210

747

226/158

0.53

248

758

194/134

0.73

330

3927

156/106

0.90

524

728

246/310

0.89

360

729

307/201

0.72

315

208

360/276

1.43

400

740

307/206

0.71

324

822

260/102

1.65

940

Material Choices

NF-PE-SG

polyester filter cloth

NF-PE-SGP

polyester filmed(coated)filter cloth

NF-PE-SGWR

polyester waterproof&oil repellent filter cloth

NF-PE-SGE

polyester antistatic filter cloth

NF-PE-SGEWR

polyester antistatic&waterproof&oil repellent filter cloth

NF-PE-SGEP

polyester antistatic filmed(coated)filter cloth

Advantages of Polyester Filter Cloth:

1.Strong acid resistance

2.excellent wear and tear resistance

3.high tensile strength

4.high heat-resistant properties

5.adapt to the higher operating temperature

6.anti-mildew

7.best price Used in : Pharmaceutical, sugar, food , chemical, metallurgy , industrial filter presses , centrifuges , etc.
